1. Single Sheet Iron Core Loss Tester

The Digital Iron Loss Tester Is Used To Measure The Iron Losses Of Electrical Steel Directly In Watt/Kg Of Materials Like CRGO & CRNGO.

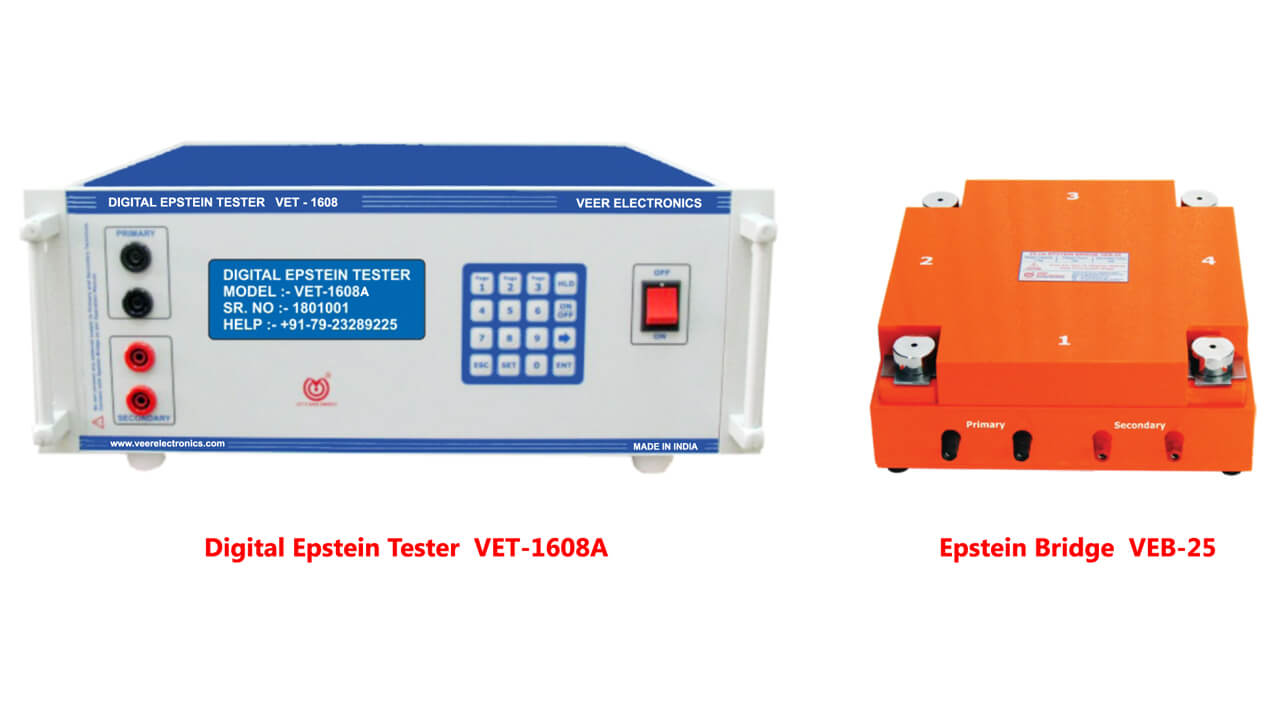

2. Digital Epstein Tester

Digital Epstein Tester is complete stand-alone instrument to measure AC magnetic properties of electrical steel of all grade and gauges mostly.
It also refers IEC 60404-2 & IS: 649. Epstein Frame method is standard & worldwide accepted method to test important magnetic parameters like Watt/kg, VA/kg, Magnetizing Force, Permeability, Form Factor etc. on different induction.
This AC Magnetic Properties includes Iron Losses, Permeability and Magnetizing Force. The Epstein Tester measures the Iron Losses (Watt/kg, VA/kg), AC & Peak Magnetizing Force, AC & Peak Permeability, Form Factor, etc. at different Induction. These parameters can help you to plot the BH curve as well.

3. Precision 3 Phase Power Analyzer

Accurate Instrument to test To Perform No Load & Load Test of 1-Phase & 3-Phase of Distribution, Power, Control, Isolation & other transformers.

4. Toroidal Core Tester

The Toroidal Core tester is used to check if the toroidal core passes the voltage and current specs as per customer requirement.
There are two windings primary and secondary, which have same number of turns. After calculating core Area of toroidal core we can test it using this instrument by applying respected test Voltage as required for different induction. We are measuring Current of Primary winding & Voltage from secondary winding to find Losses.
